Functions & use of sandwich covers

The sandwich cover relies on the vertical force applied by our clamping systems compressing the silicon, hermetically sealing off the wells from eachother and the exterior. you cannot use one without the other. It is autoclavable and re-usable many times.

The most critical aspect of microbial and cell growth in microtiter plates is the closure system of the individual wells. The closure system must:

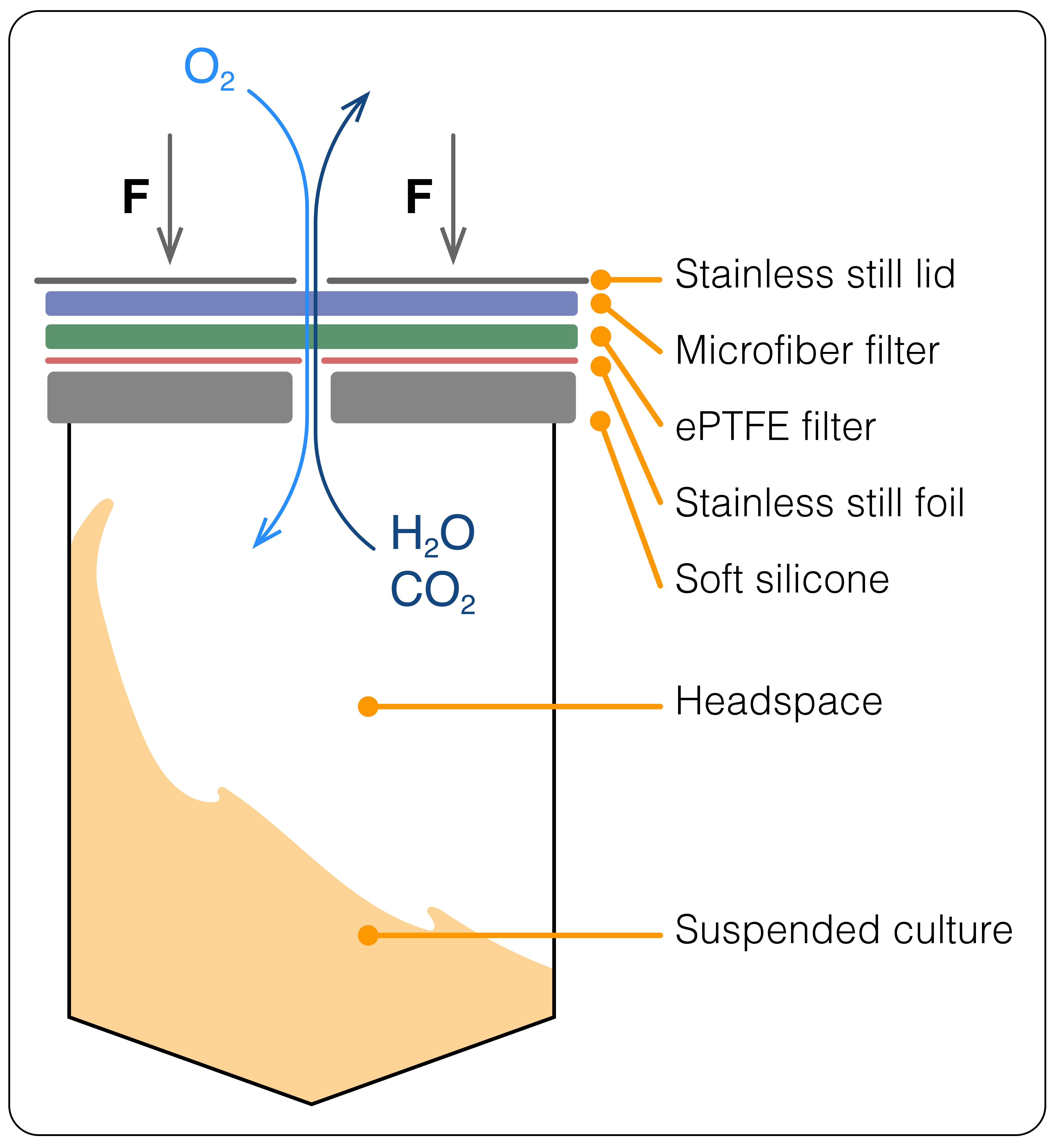

Schematic drawing on a suspended culture where a clamp exerts a vertical pressure on the sandwich cover, compressing the silicon.
  • Prevent (cross)-contamination even during vigorous shaking
  • Permit a reproducible and defined exchange rate of headspace air
  • Limit evaporation.
  • Equalize physical conditions in all wells: the wells in the corners should have exactly the same characteristics as the wells in the center of the microtiter plate.

In all of these points, the sandwich cover/clamp solution has proven to be an superior alternative to adhesive semi-permeable foils, making it the top choice for high quality research in microplates.

Background

Inspired by the general principle used for multi-litre bioreactors (an average aerobic microbial culture needs an air supply of one working volume per minute), we designed the standard sandwich covers (for fast growing bacteria) to have a headspace refreshment rate of 1-2 culture volumes per minute. Such a headspace refreshment rates secures oxygen concentrations in the headspace of at least 18% (v/v), even at an oxygen consumption rate by the culture of 40 mmol O2/L/ minute.

Such a headspace refreshment rate assures a sufficient oxygen supply, but limits the evaporation to about 2% of the culture volume per day (at an ambient humidity of 50% and 30ºC, see hydrodynamics, oxygen transfer rates): this degree of water loss is acceptable for most projects, and so avoids the need for air humidification in the incubator for most applications. The latter additionally prevents fungal growth in the incubator and so contributes to a safe working environment. To increase the gas-liquid transfer, orbital shaking is our method of choice since it is proven to be effective (see literature), and gives rise to exactly the same hydrodynamic conditions in each well (see hydrodynamics, oxygen transfer rates).

The sandwich cover relies on the vertical force applied by our clamping systems; you cannot use one without the other

Choosing the right cover

Hole size: In order to determine what hole size is best for your purpose, you need to assess your tolerance to evaporation. For bacteria and yeast cultures, which are typically relative short (< 5 days), we recommend the regular covers (CR1224, CR1296) as evaporation over time is not such an issue and you want to maximize the headspace air replenishment. For slow growing strains and (animal) cell cultures, we supply sandwich covers with slower headspace exchange rates, also referred to 'low evaporation covers', (in the order of 0.2 culture volumes per minute). This allows cultivation times of 5-14 days without excessive evaporation.

Advantages of types of Silicon:

  • Spongy silicone, which is relatively soft, and easy to compress, and so closes off the wells already at relatively low forces. Please note that this kind of silicone is not “ spongy” is the sense that it take up water: it has closed cells, filled with air, and the surface is a solid film, with no pores.
  • Solid silicone layers, for these applications where the permeability of the silicone has to be absolutely minimized (e.g. for low culture volumes, such as in the covers for 96-round shallow well plates CR1596), but also for certain type of fungi that may tend to grow to inside the spongy silicone.

Layers of the sandwich cover

Sandwich covers have 4 or 5 layers (all re-usable and autoclavable):

A: a stainless steel lid for rigidity

B: a microfiber filter (blue)

C: an ePTFE filter (0.3 micron) laminated between two polyester/polyamide fabrics (green)

D: a stainless steel foil with pinholes to control the headspace refreshment rate and evaporation (only in covers CR1596 and CR1524a)

E: a silicone layer with 96 holes (to hermetically seal the "mini-reactors")
